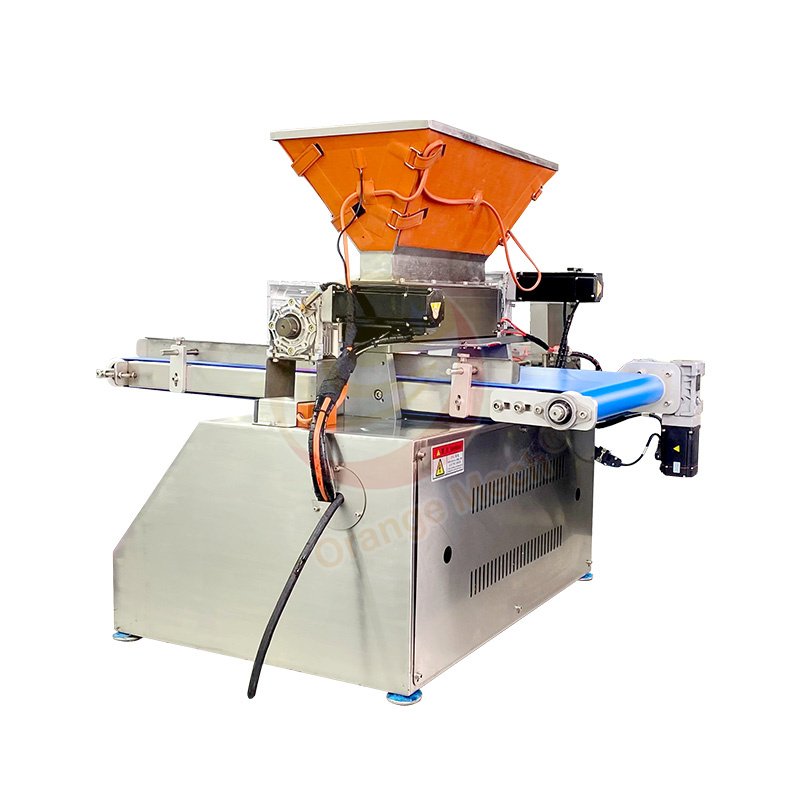

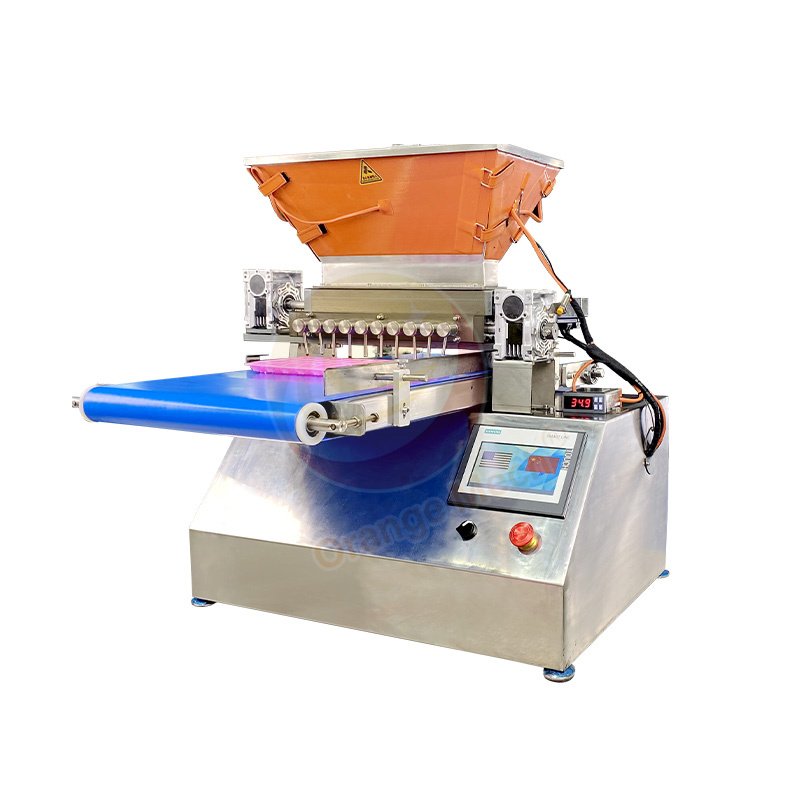

Working Principle:

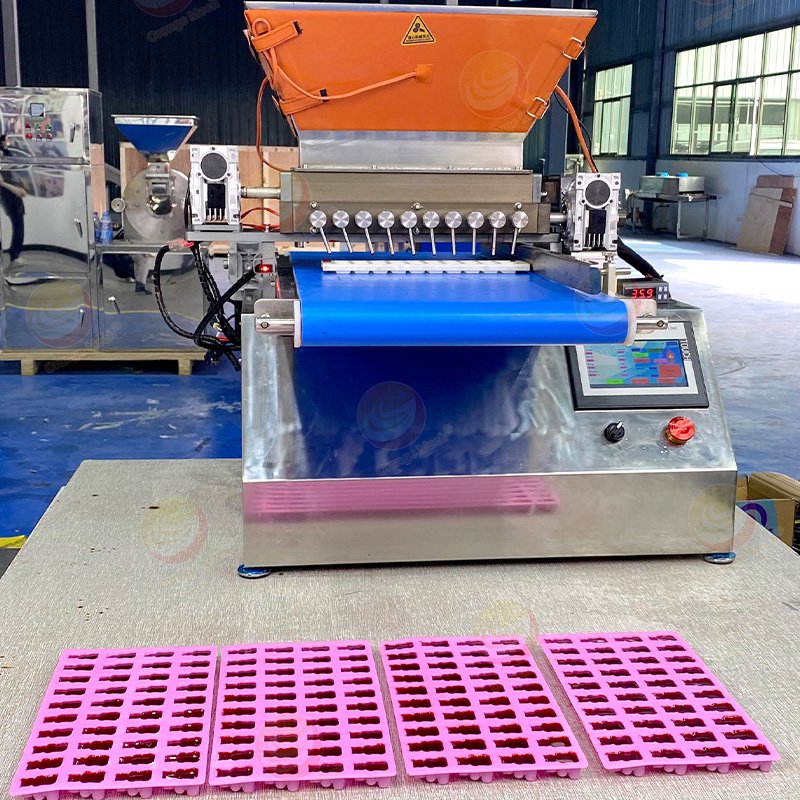

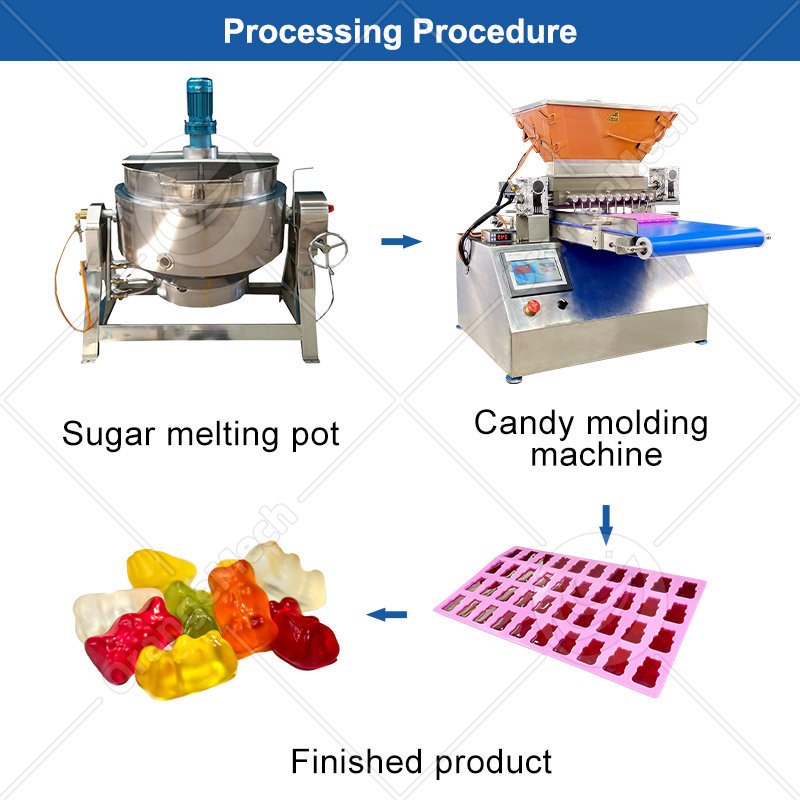

The tabletop candy depositor machine of three main modules: a constant-temperature feeding system, a PLC-controlled servo-driven quantitative depositing system, and a mold conveying and forming system. After the prepared syrup is poured into the heated hopper, the operator configures production parameters
such as depositing time, temperature, and the number of rows and spacing of the molds via the PLC touchscreen. Once the machine is started, the syrup is evenly deposited into silicone molds through the nozzles. The conveyor belt operates in synchronization with the depositing cycle; upon completion of a depositing run, the molds are automatically advanced from the station to await cooling and forming.
Advantages:
- 1. Double-layered hopper with silicone heating elements：Maintains a constant syrup temperature, preventing solidification due to cooling—which could otherwise clog pipes and cause uneven dispensing.
- 2. PLC +3-servo motor drive system：Ensures precise depositing weights, keeping the margin of error below ±0.1g.
- 3. Compact structure and small footprint：The gummy depositing machine occupies less than 1 square meter of space; it is tabletop-ready and does not require a dedicated factory facility.
- 4. Food-safe materials：Parts in contact with the product are made of food-grade 304 stainless steel, complying with food hygiene standards.
- 5. 10.7-inch PLC touchscreen：Features a bilingual (Chinese/English) interface and stores over 10 candy recipes, eliminating the need for repeated adjustments when switching products.
- 6. Versatile shapes：Compatible with various molds to produce candies and chocolates in diverse shapes.
- 7. Intelligent operation：The conveyor belt is synchronized with the depositing program, eliminating the need for manual mold placement.
- 8. Multi-functional：Capable of producing a wide range of items, including starch-free gummies, vitamin gummies, collagen gummies, jelly treats, gummy bears, toffees, lollipop centers, chocolates, and more.
- 9.Built-in suck-back function: After syrup is dispensed through the nozzles, residual liquid often remains inside the tips. Without a suck-back function, this syrup would drip onto the conveyor belt, creating a cleaning challenge. Our machine features a suck-back function that prevents dripping, ensuring the conveyor belt remains clean and hygienic.
- 10.Adjustable conveyor belt height: The height of the conveyor belt is adjustable to accommodate a wider range of molds, allowing the machine to produce different products by simply switching molds.
- 11.360-degree adjustable depositing heads: The candy machine is equipped with 10 depositing heads, each of which can be freely adjusted 360 degrees.
Machine details:

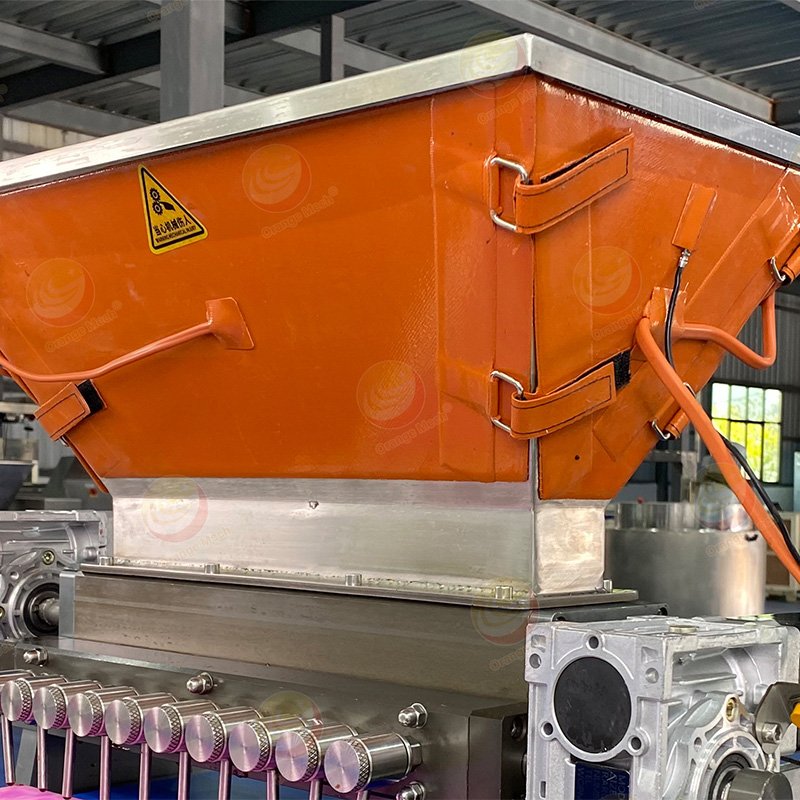

Silicone heating belts can maintain the syrup at a constant temperature.

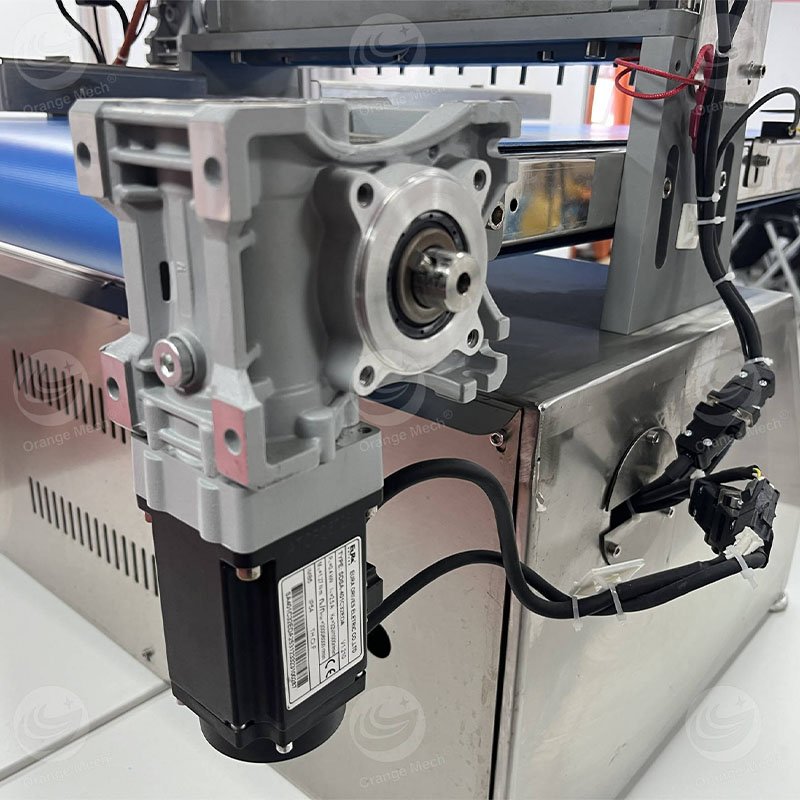

Three servo motors ensure precise dispensing, resulting in zero deviation in candy weight.

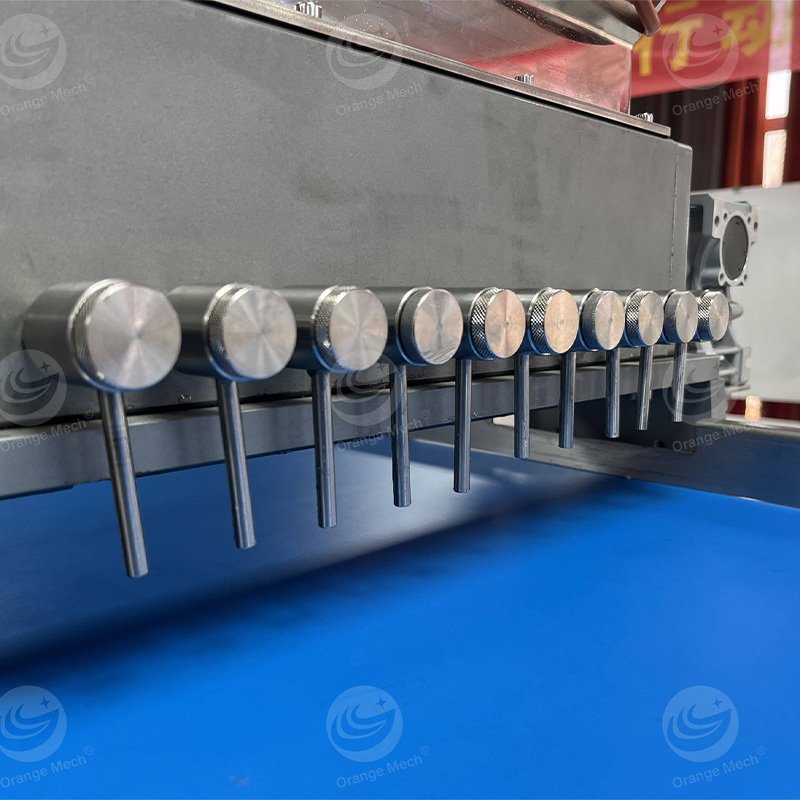

Equipped with 10 depositing heads that can be freely adjusted 360 degrees; for heavier candies, two heads can deposit simultaneously.

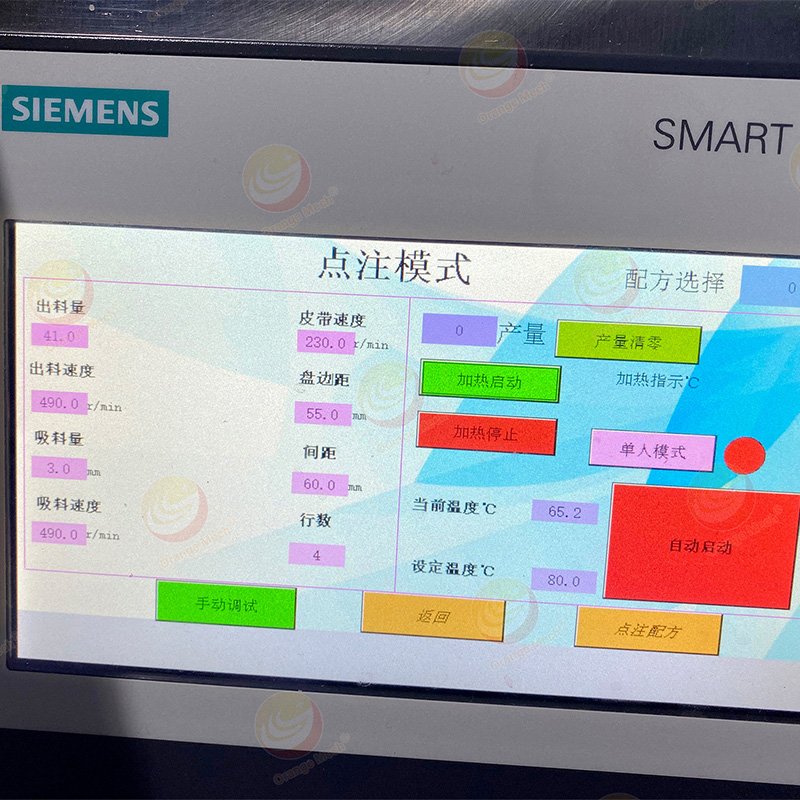

10.7-inch large display, Chinese/English interface, renowned Siemens brand; stores over 10 product recipes, eliminating the need for repeated setup.

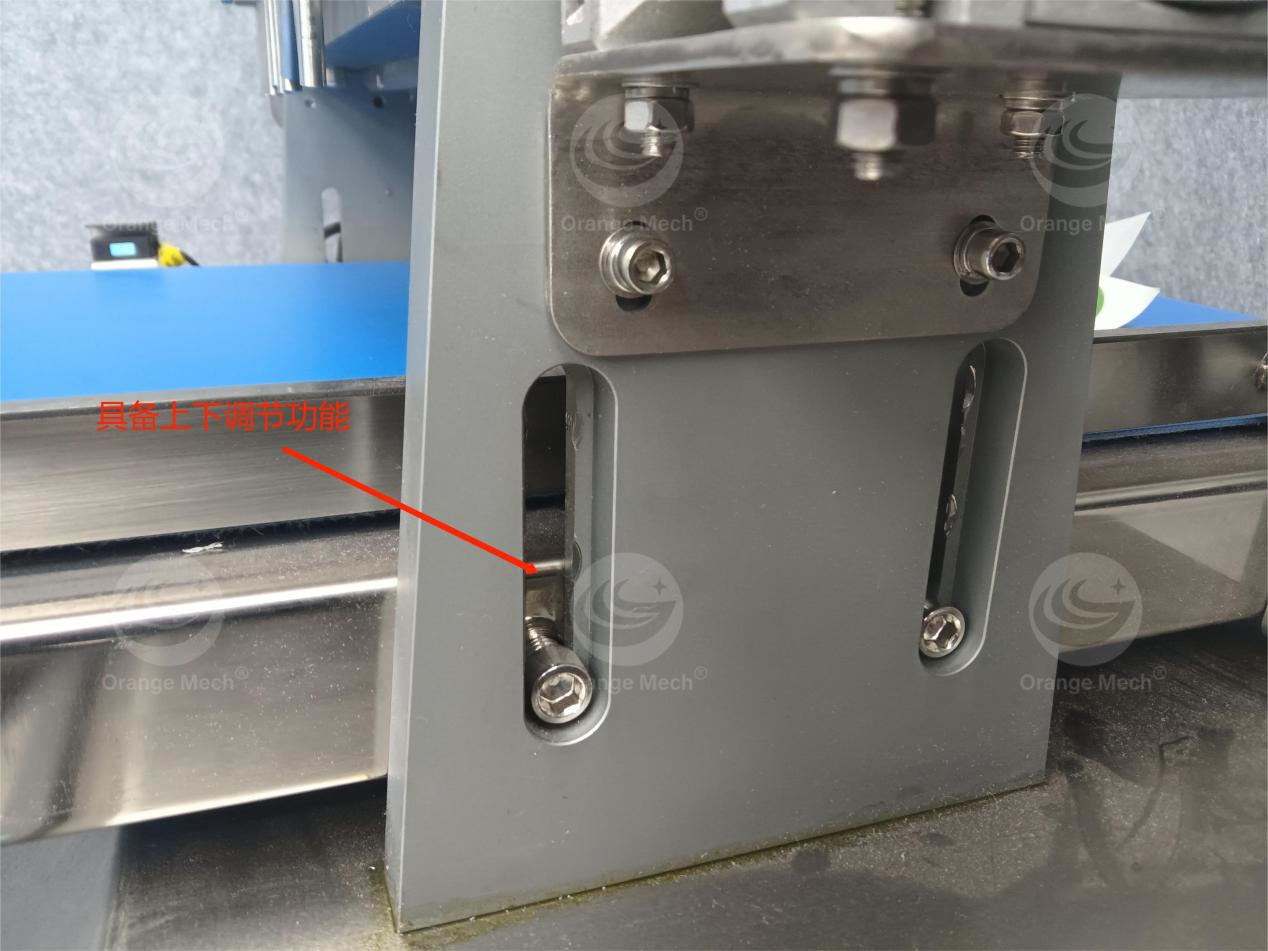

The height can be adjusted via the conveyor belt to accommodate products of varying heights and suit a wider range of molds.

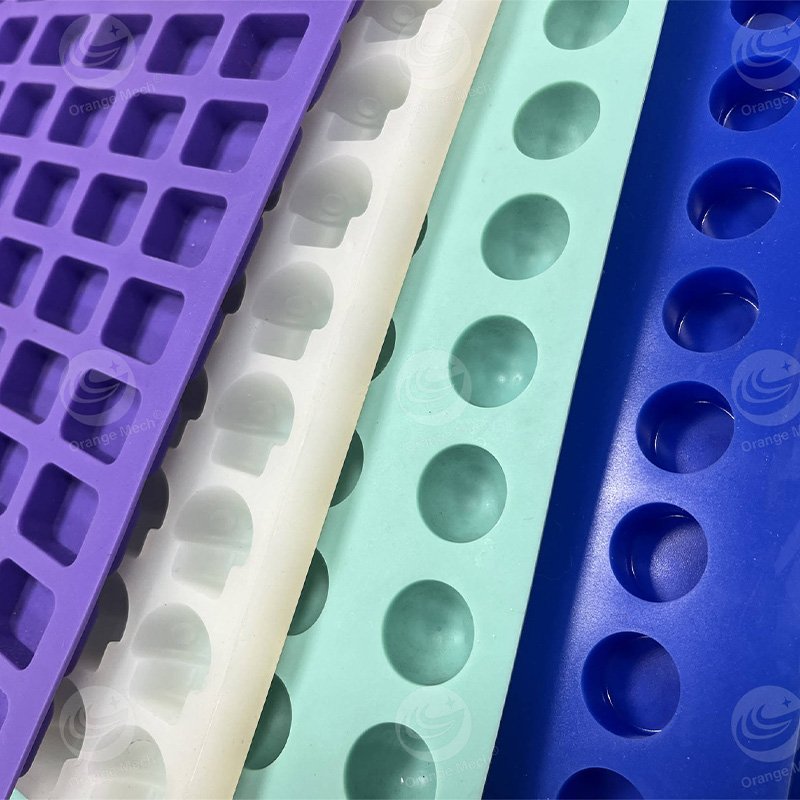

Silicone molds are typically chosen for this process; however, we can also create custom molds, allowing for the production of items in various shapes by simply swapping the molds.
Application:
The gummy candy machine is capable of producing functional vitamin gummies, collagen gummies, gummy bears, toffees, lollipop bases, and chocolates in various shapes. It is an ideal choice for food company laboratories (for prototyping), small-scale candy processing plants, small workshops, dessert studios, and aspiring entrepreneurs.

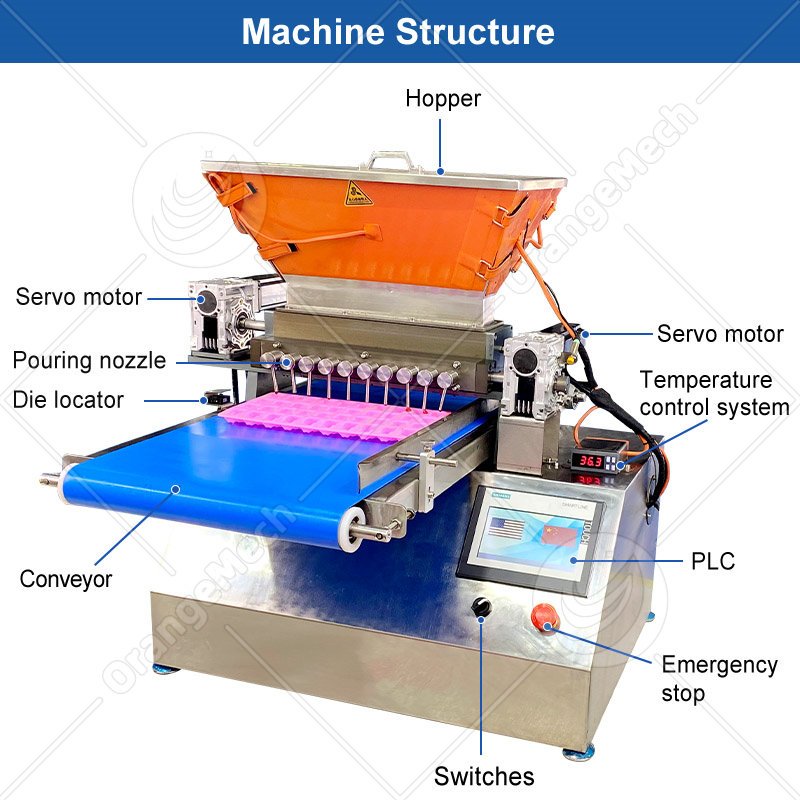

Product Structure Diagram:
To gain a more intuitive understanding of this equipment, please refer to the structural diagram, which clearly labels key components such as the heated material hopper, PLC touchscreen, and dual-servo depositing head. The machine features a compact design, making it suitable for candy prototyping and small-batch production.

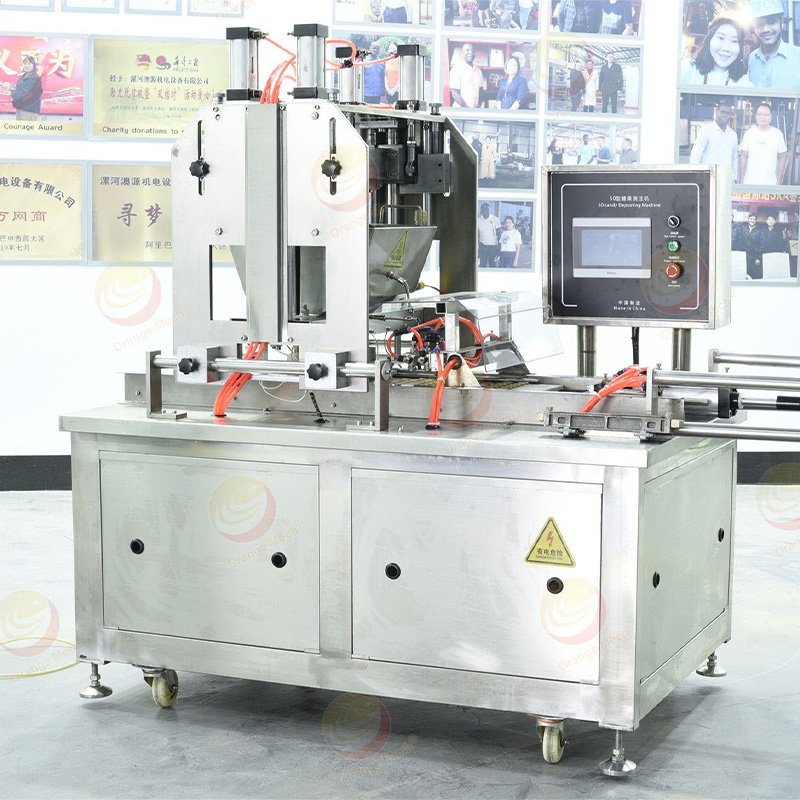

Other Models:
In addition to the PLC-controlled servo tabletop candy depositor, we offer a variety of models and specifications to meet your diverse production needs.

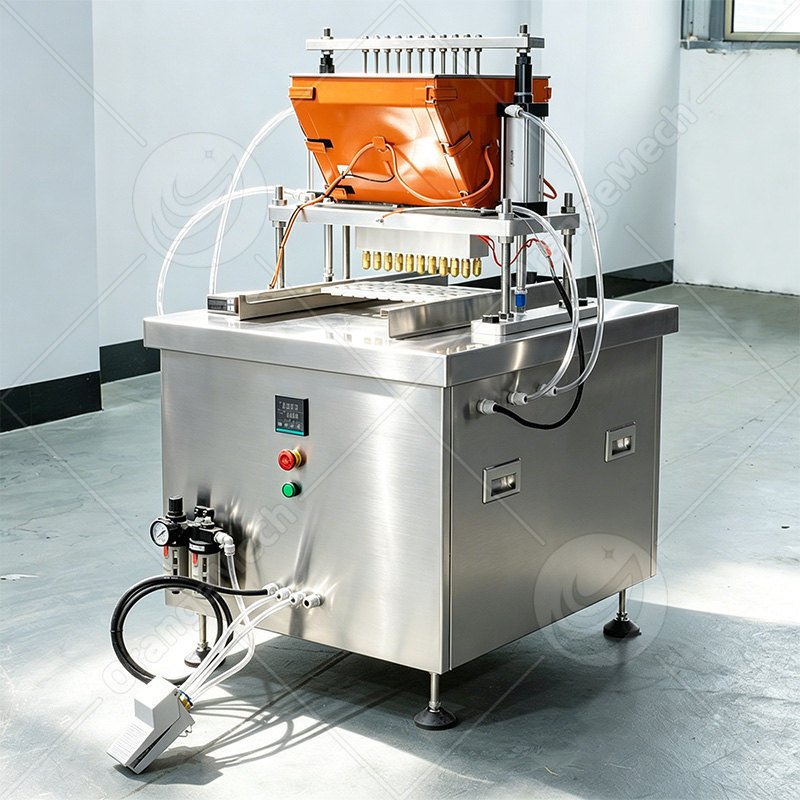

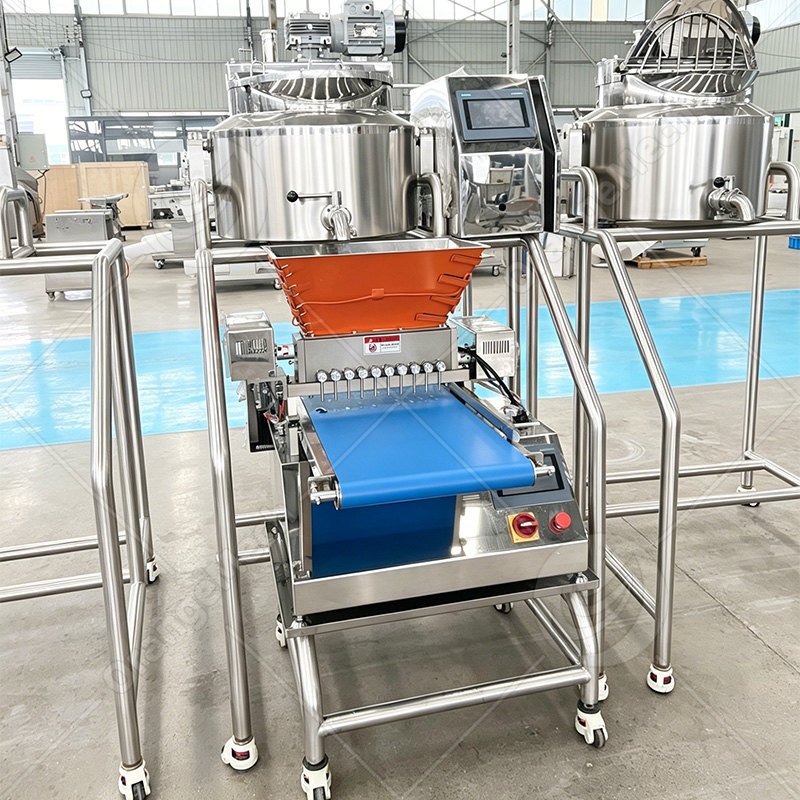

Vertical candy depositing machine—an ideal tool for new entrepreneurs
