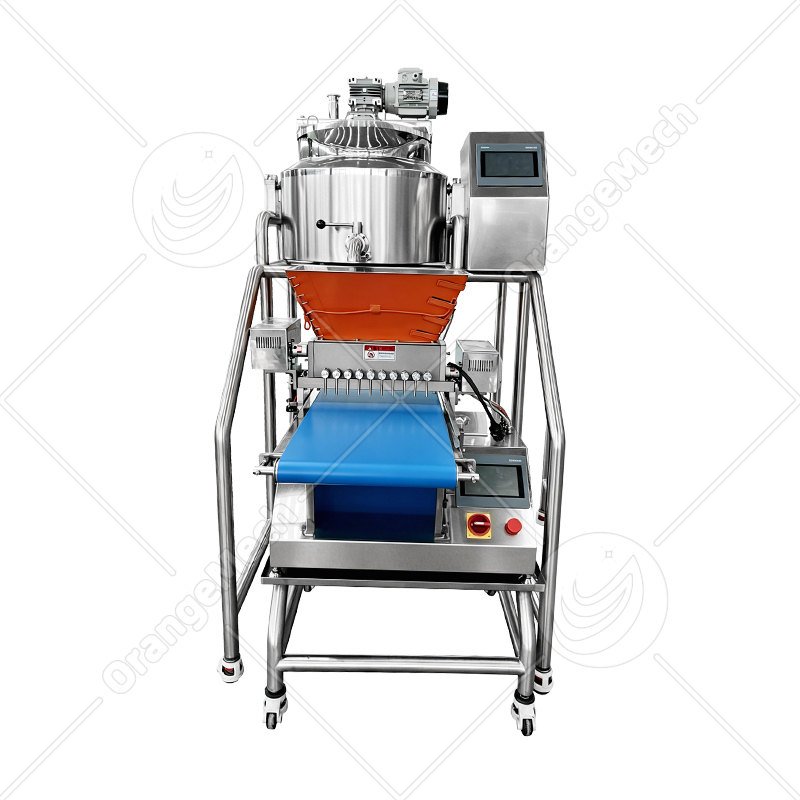

This gummy depositor machine is an upgraded version of tabletop candy machines, integrating the full processes of syrup cooking and depositing forming in one unit. Equipped with movable casters at the bottom for flexible relocation, it features a compact structure and small floor space, specially designed for new entrepreneurs and small candy processing factories with limited workshop space.
How do candy gummy candy machines work?

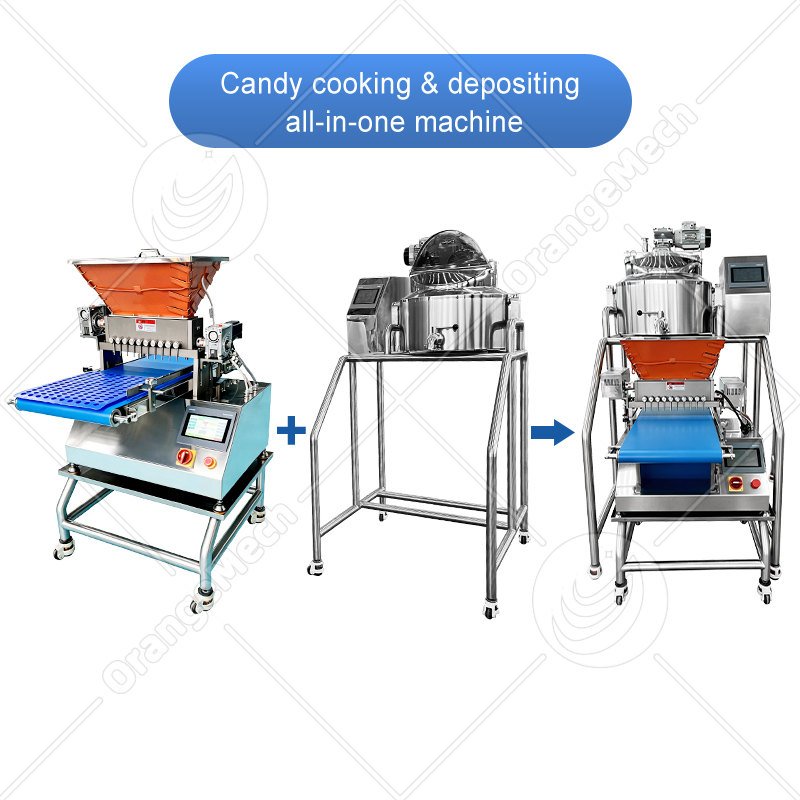

This integrated syrup cooking & depositing machine consists of stainless steel frame, insulated stainless steel mixing cooking tank and tabletop candy depositor. Pour raw materials such as granulated sugar and glucose syrup into the insulated mixing tank for mixing and boiling. The mixture will then be precisely dispensed into molds by the tabletop candy depositor. After cooling and forming, candies and chocolate products in various shapes can be obtained.
Candy depositor Specifications:
| Name: | heated candy depositor |
| Model: | OR-40L |
| Voltage: | 380V/50-60Hz, customizable |
| Total Power: | 10.55KW + 3.8KW |
| Machine Weight: | 300kg |
| Material: | Food Grade 304 Stainless Steel |
| Sugar Cooking Pot Capacity: | 40L |
| Depositing Hopper Capacity: | 16L |
| Production Capacity: | 30–50kg/h |
| Overall Dimension: | 1180×1610×2250mm |

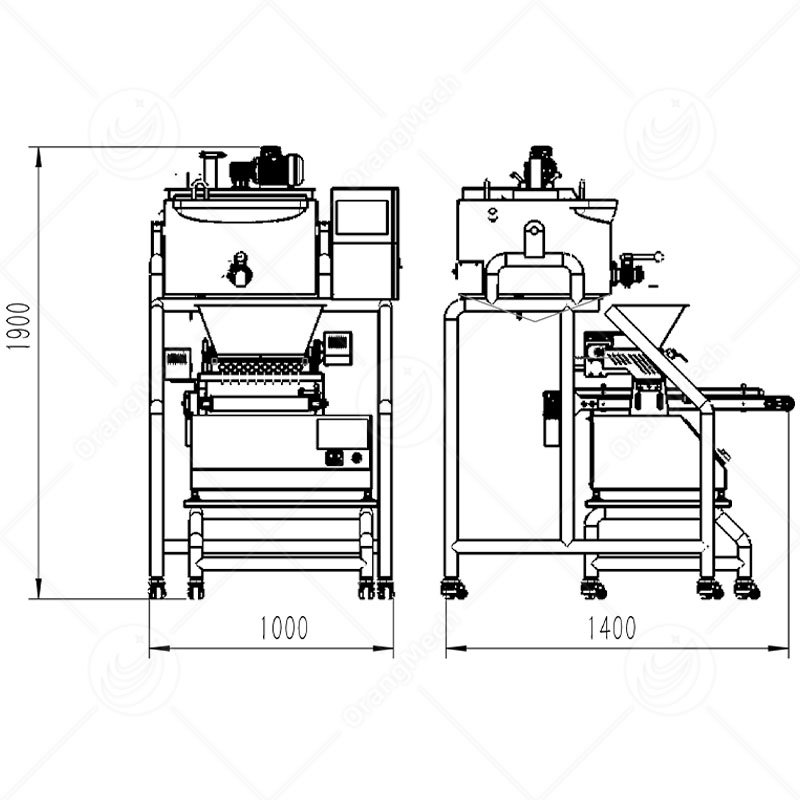

Automatic gummy depositor Structure:
Candy depositor Advantages:
- The sugar cooking pot is mounted on the upper part of the heated candy depositor machine. Its PLC touch screen allows control over syrup temperature, heating modes and stirring patterns, ensuring consistent syrup concentration and uniform candy taste for every batch.
- This candy machine is fitted with three servo motors to achieve precise control over depositing volume, traversing speed and mold conveying speed. The weight tolerance of single candy is less than 0.1g.
- It adopts a 10.7-inch Siemens touch screen with free switching between Chinese and English languages. Hundreds of candy formulas can be stored to avoid repeated parameter adjustment.
- The frame is equipped with Fuma casters with locking brakes, enabling free movement and placement. Thanks to its compact layout, candy production can be carried out without a large workshop or spacious area.
- No extra supporting equipment is required for producing candies and chocolate products.
- Custom voltage options are available upon customer request.
- Made of food-grade 304 stainless steel; corrosion-resistant, easy to clean, and compliant with food production hygiene standards.
- Direct supply from our factory，candy making machine price with competitive pricing. We accept OEM service and support custom mold development.
Product details:

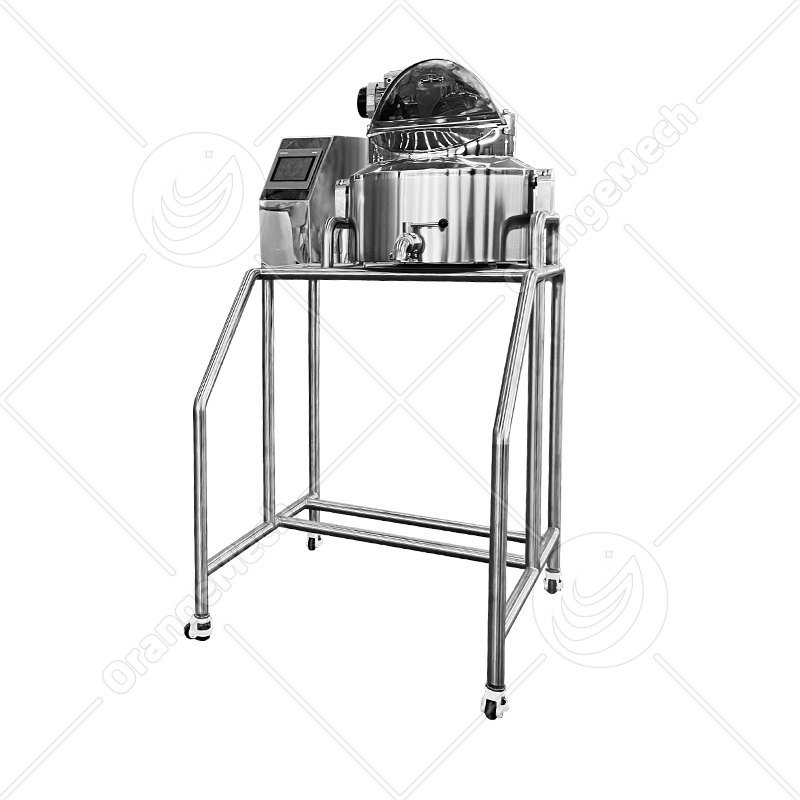

Syrup Cooking Kettle：
① Equipped with spherical handle latches on the top and a quick-open flip cover for fast securing of the lid.
② A grid structure is installed inside the kettle to prevent operators’ hands from reaching into the tank and guarantee production safety.
③ The air release valve adopts a knurled knob design with side vent holes to release internal pressure of the kettle.
④ The discharge outlet features a quick-disassembly structure for easy removal and cleaning.

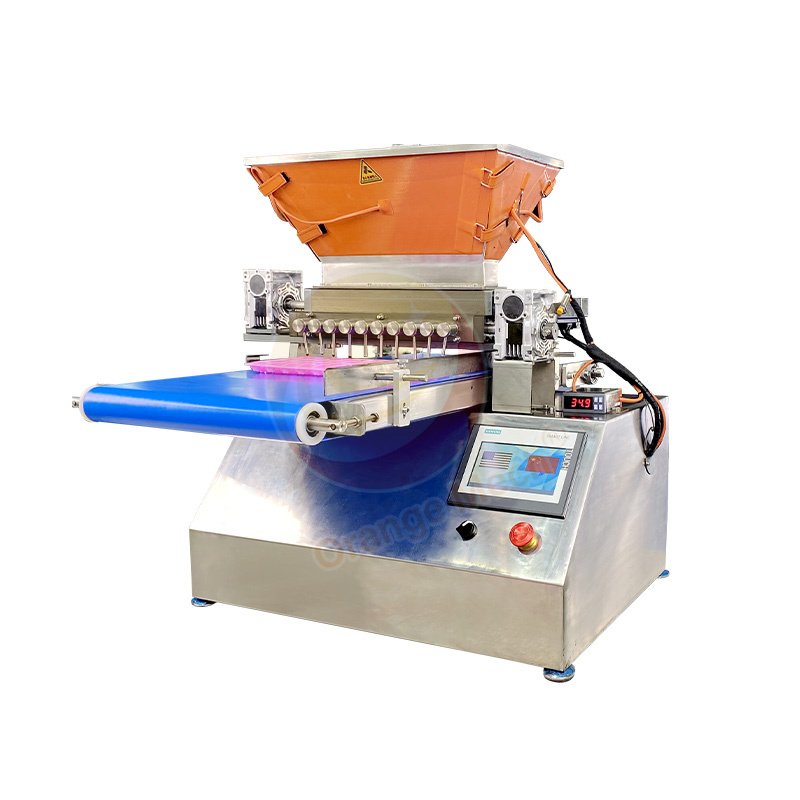

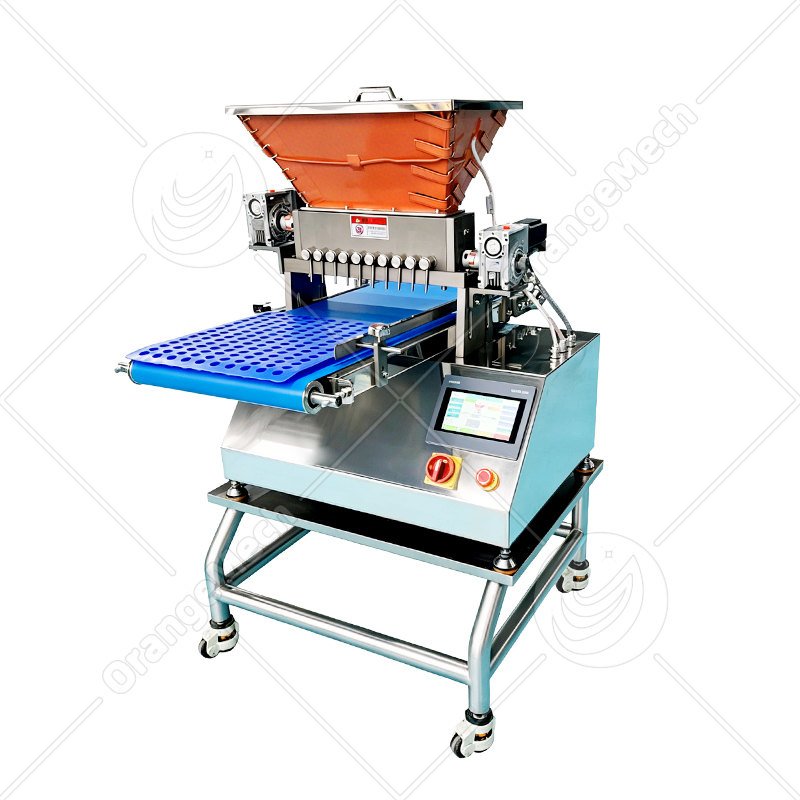

Candy Depositor Unit：
① Three servo motors ensure consistent discharging speed and stable mold conveying speed, controlling the weight tolerance of each single candy within 0.1g.
② Silicone heating strips are wrapped around the outer side of the stainless steel hopper to maintain constant syrup temperature, avoiding syrup solidification caused by low temperature and blockage of depositing nozzles.
③ It comes with 10 discharging nozzles; the number of working nozzles can be selected according to customers’ molds. The depositing head supports 360-degree rotation.
④ This machine can produce candies ranging from 0.5g to 30g, with adjustable weight parameters set via the PLC touch screen.
⑤ The height of the conveyor belt can be adjusted to match customers’ molds.

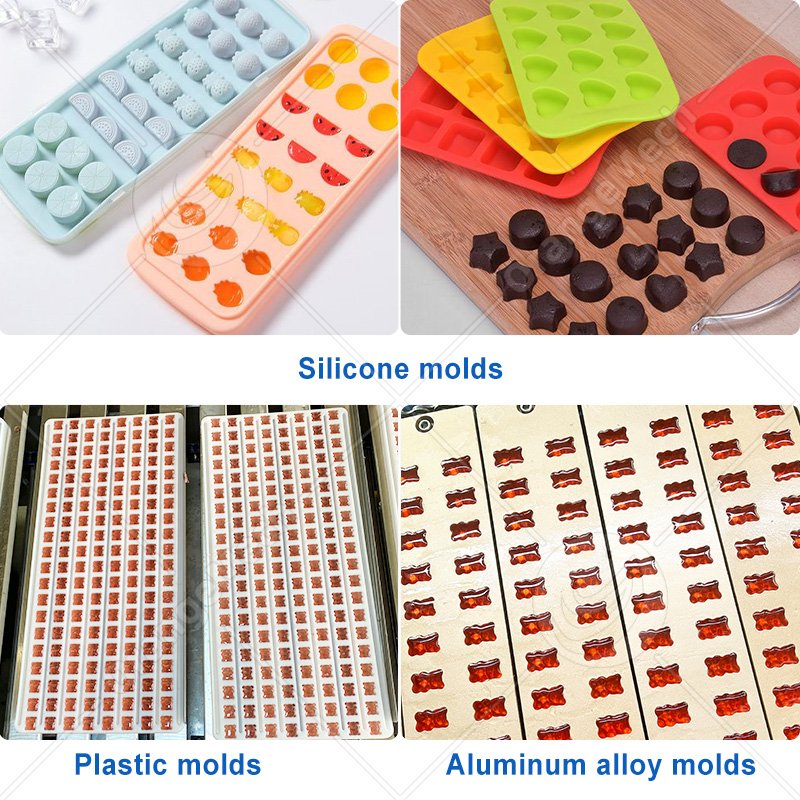

Molds：
① Optional mold materials include food-grade silicone, plastic and aluminum alloy.
② Orangemech supplies general gummy molds, functional special molds, special-shaped molds, chocolate molds and toffee gummy molds. We accept ODM custom mold development according to clients’ designs.
Candy making machine FAQ：
Q: What products can this machine make?
A: Orangemech candy depositor can produce collagen gummies, vitamin gummies, bear-shaped gummies, fruit-shaped gummies, animal-shaped gummies, crystal clear gummies, fruit juice gummies, QQ candies, yogurt-flavored gummies, lactic acid gummies, floral flavored gummies, toffee gel gummies and various chocolate products.
Q: What is the hourly output of this machine?
A: The standard capacity is 30–50 KG/h, suitable for new product research & development, new entrepreneurs and small candy processing factories.
Q: Is 380V the only available voltage? Can I customize the voltage?
A: Orangemech machines come with a standard 380V power supply. We can adjust to 220V or 415V power options to match clients’ local power conditions.
Q: What are the respective capacities of the cooking tank and temperature-controlled hopper?
A: The cooking tank has a capacity of 40L while the thermal-insulated hopper is 16L. The ample storage lessens repeated boiling operations, and silicone heating strips prevent syrup from cooling and blocking the depositing outlets.
Q: How soon will goods be delivered after order placement?
A: Shipment will be arranged within 3 to 7 days once full balance payment is received. If you need customized voltage or custom molds, the delivery time will be confirmed with our sales manager.
Q: What’s the warranty period of the machine? Is after-sales service available?
A: All Orangemech candy depositors carry a one-year warranty, with complimentary technical assistance provided throughout the service life.. If spare parts need to be replaced, only the cost of the parts will be charged.
