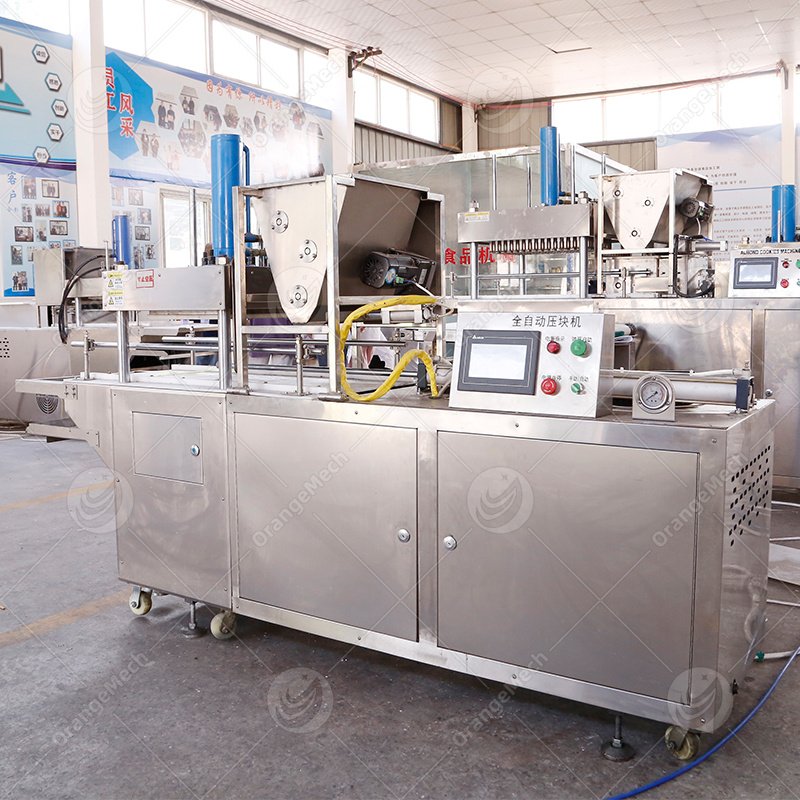

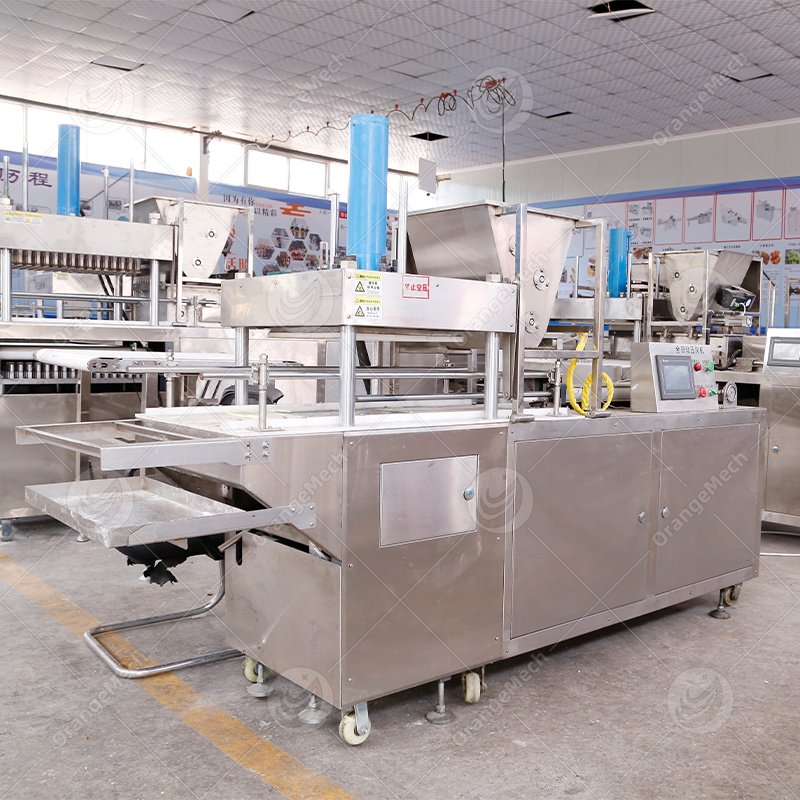

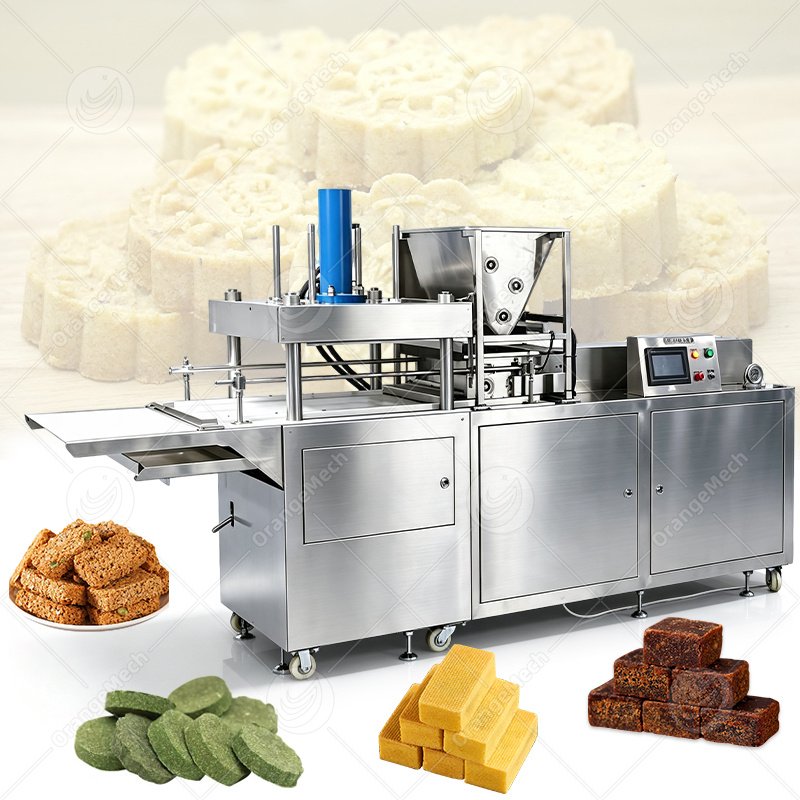

The sugar cube machine uniformly conditions powdered and granular raw materials by adding water inside the mixing mechanism. The feeding system charges the treated raw materials into the mold cavity. Bidirectional hydraulic force exerted by the upper and lower dies compacts raw materials into well‑defined block‑shaped finished products. Upon completion of compaction, the lower die travels upward to eject the compacted sugar cubes from the mold. The demolded sugar cubes are subsequently transferred onto the conveyor belt by the pusher plate.
Advantages of the High-Density, Shatter-Resistant Sugar Cube Machine
1.High level of automation, saving labor costs
The sugar cube maker operates autonomously—from mixing and feeding to pressing, demolding, and discharging—eliminating the need for manual intervention and reducing labor requirements.
2.Smart PLC touch control for easy operation
Equipped with a 10.4-inch LCD touchscreen control system that supports multiple languages; switching between products or materials requires only simple parameter adjustments.
3.Wide range of applications and product versatility
The sugar cube press is capable of producing not only sugar cubes but also various pastries, pet foods, and tablets; it can compact any material provided it is in powder or granular form.
4.Customizable molds supporting various sizes and shapes
Orangemech offers custom molds in various sizes and patterns, allowing for the production of sugar cubes and pastries in diverse specifications and shapes simply by changing the mold.
5.High-pressure hydraulic molding for compact, durable finished products
Sugar cube press Utilizing an industrial high-pressure system with adjustable pressure (0–10 tons), the machine ensures stable, controllable compression; the resulting products are dense, durable, and resistant to crumbling or shedding, resulting in a low defect rate.
Detailed Specifications
| Product Name | Sugar Cube Maker |
| Voltage | 380V/50Hz |
| Power | 7.5 KW |
| Production Capacity | 100 KG/H |
| Mold Size | 4.5 x 4.5 CM(Customizable) |
| Working Pressure | 0–10 T |
| Contact Material | 304 Stainless Steel |
| Machine Weight | 650 KG |
| Overall Dimensions | 2650 x 700 x 1750 MM |

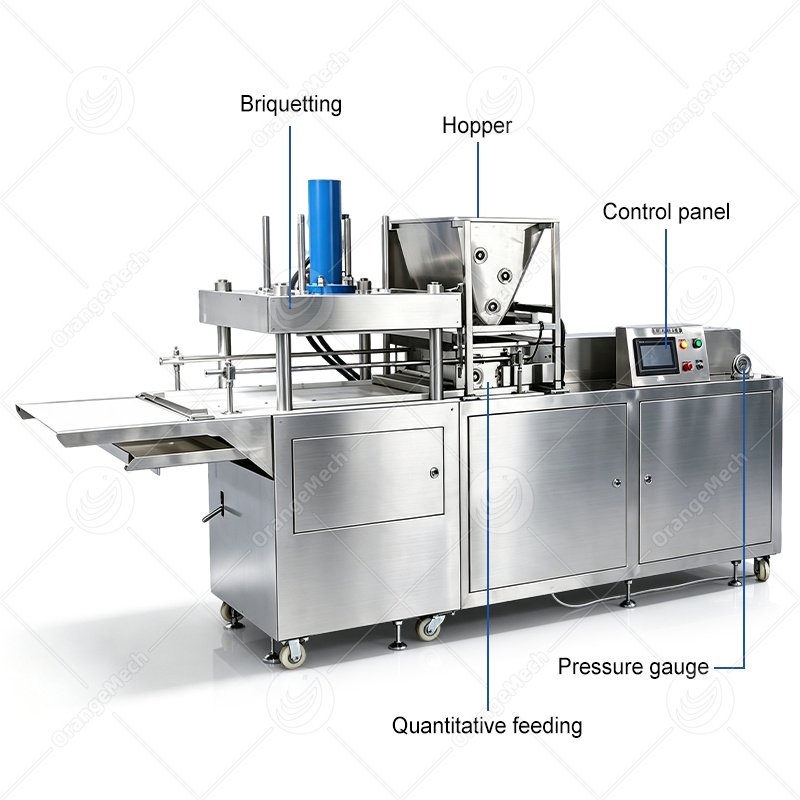

Detailed Introduction of Each Equipment Component

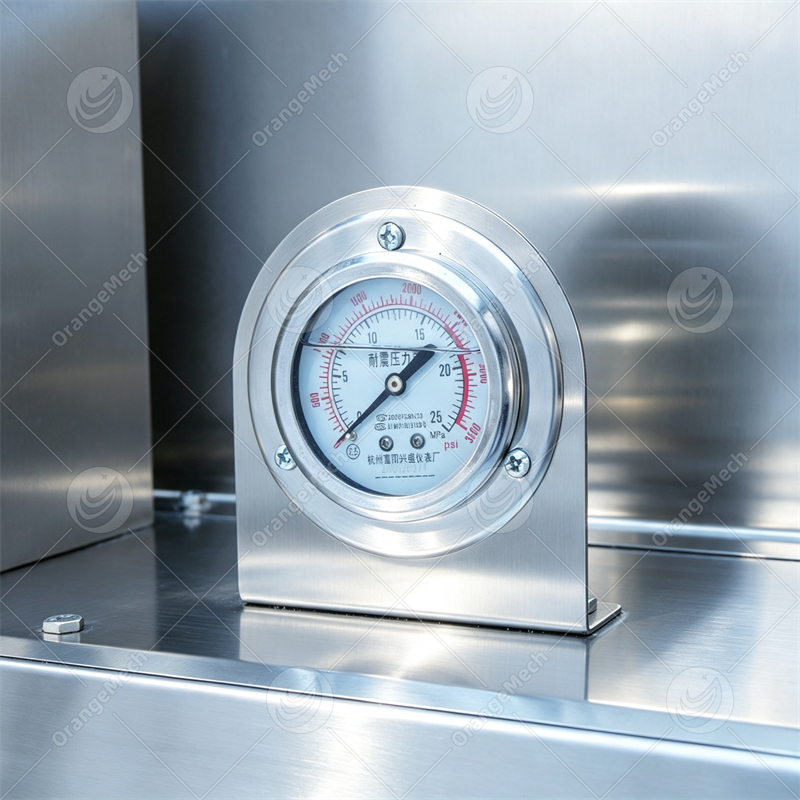

Equipped with pressure gauge

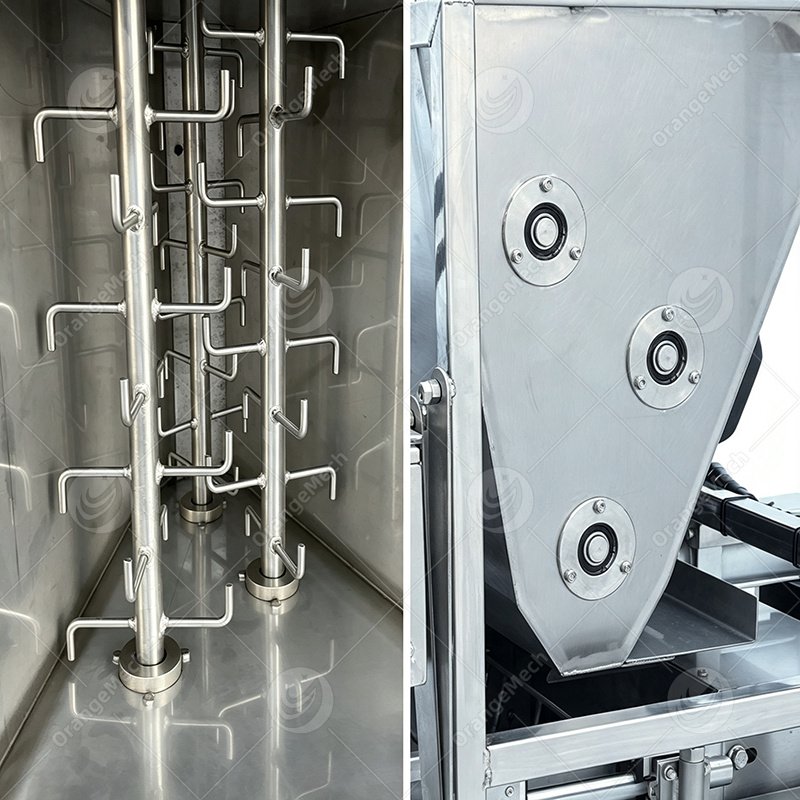

There are several groups of mixing shafts in the hopper
The hopper can rotate, which is convenient for cleaning
There is a pressure gauge on the sugar cube machine, which can directly see the working pressure of the hydraulic cylinder, and accurately adjust it for different materials (granular or powdery) to ensure that the finished product specifications are consistent.
There are several groups of stirring shafts in the hopper of industrial sugar cube forming machine, which can break up the materials and ensure the uniform transportation of the materials.
Hinges are installed at the bottom of the hopper, which can rotate 90 degrees, and it is convenient to clean without disassembly during cleaning.

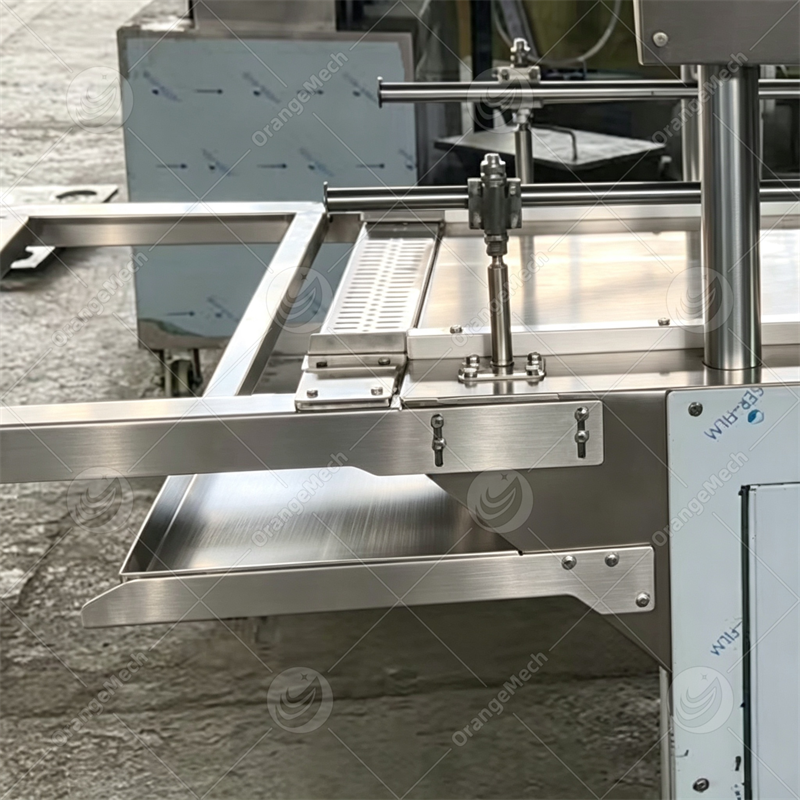

The waste can be recycled to save the cost

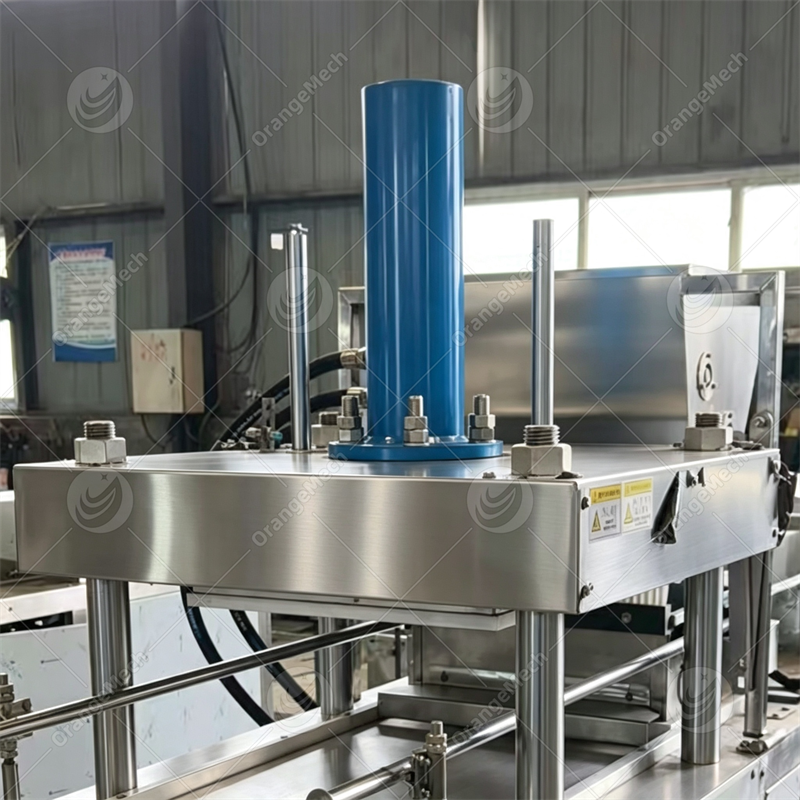

The hydraulic column is provided with a limit switch

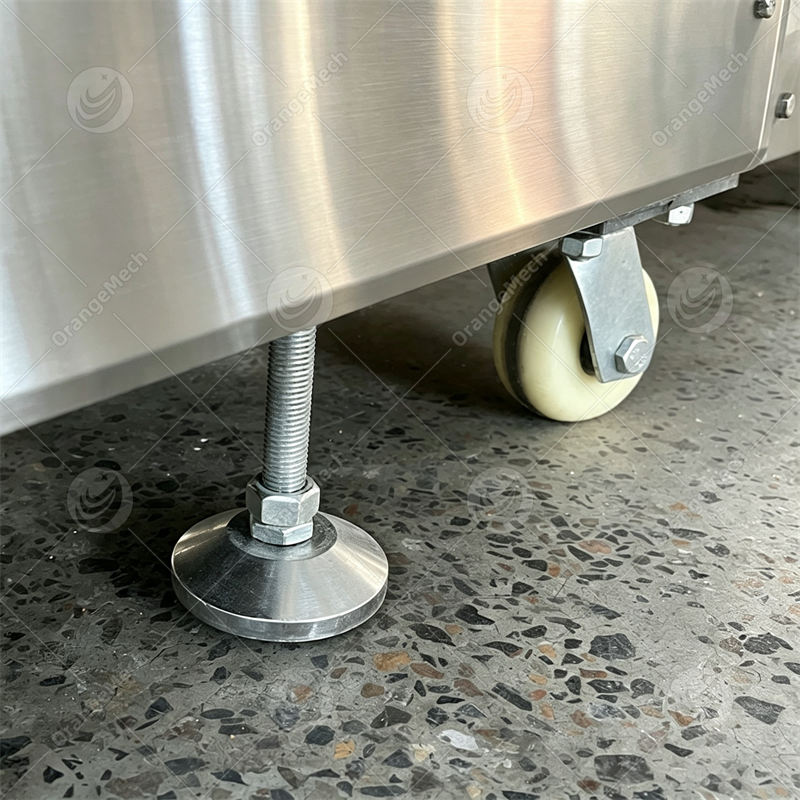

Equipped with directional casters, it is convenient to move

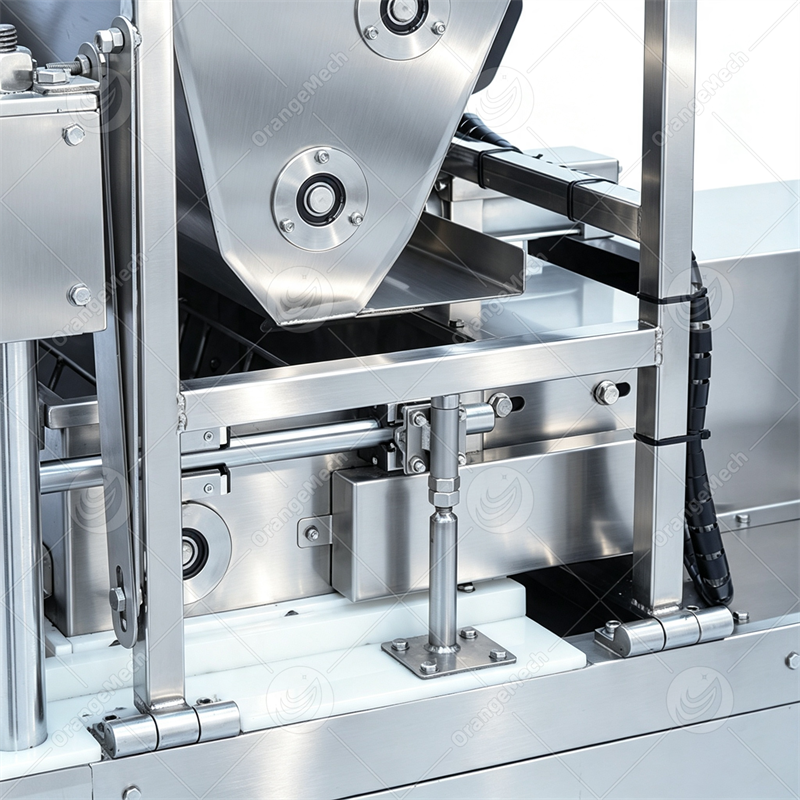

The discharge part is equipped with a mesh sieve plate. When the finished product is transported to this part, the excess powder will fall through the gap of the sieve plate and be recycled again.
The limit switch on the hydraulic column can limit the maximum stroke and adjust the position to quickly switch products with different thicknesses.
At the bottom of sugar cube maker machine, there are universal casters and adjustable support feet, which can be easily moved, and the adjustable support feet can make automatic sugar cube press machine more stable.
Applications of the Multi-Functional Sugar Cube Press
1.Confectionery Industry: Capable of producing brown sugar cubes, white sugar cubes, coffee sugar cubes, and flavored sugar cubes, as well as various pressed candies in customizable shapes.
2. Pharmaceuticals and Health Supplements: Suitable for processing herbal powders, health supplement powders, and nutritional powder blocks.
3. Snack Food Industry: Can be used to produce various pastries, meal-replacement blocks, etc.4.Pet Food: Suitable for making pet treat blocks and grain-based dental chews.
4.Pet Food: Suitable for making pet treat blocks and grain-based dental chews.
FAQs About Sugar Cube Press Machines
Q: What products can the sugar cube machine produce?
A: The Multi‑Functional sugar cube press is a compression machine; by changing molds and adjusting pressure settings, it can produce sugar cubes, brown sugar blocks, pressed candies, various pastries, solid health supplements, pet treat blocks, and more.
Q: Can the molds be customized?
A: Orangemech provides molds in two material options: UPE and 304 stainless steel. Different products require corresponding molds. We can customize molds with different sizes, shapes and patterns according to your products.
Q:What types of raw materials can the full automatic sugar cube machine process?
A: It can process both granular and powdered materials, such as white or brown sugar granules, powdered sugar, grain powders, and herbal powders.
Q: Why is water addition required for sugar cube machine production?
A: Adding water improves raw‑material adhesion to produce solid, crack‑resistant finished blocks. Either dry pressing or slight damp pressing can be adopted depending on material properties.
Q: Is the sugar cube machine fully automatic or semi-automatic?

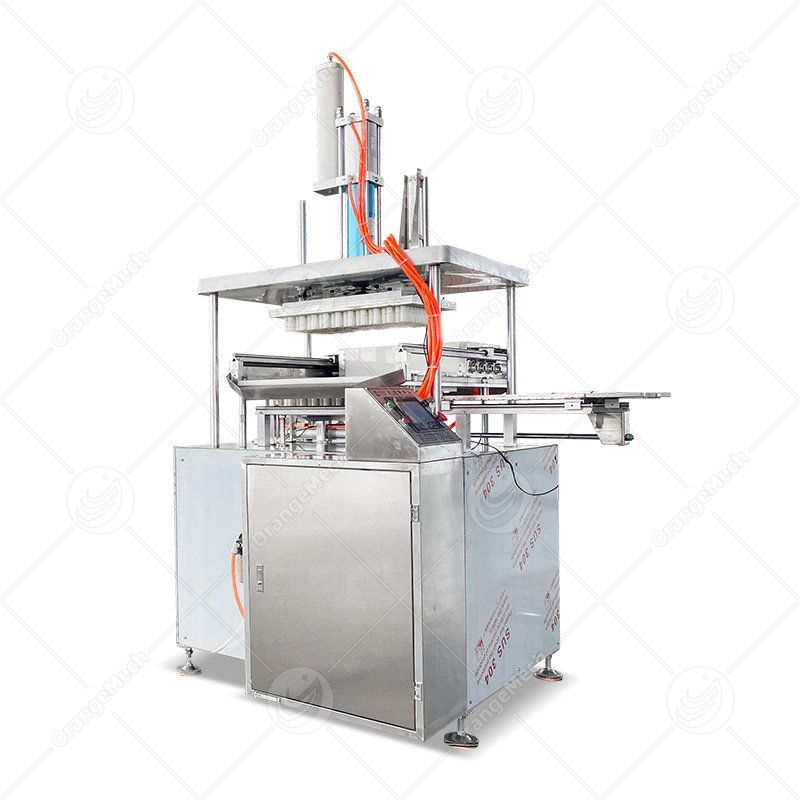

A: Orangemech offers both fully automatic and semi-automatic models. While the machine performance and operating principles are the same, the semi-automatic version requires a manual operator to feed the material.
