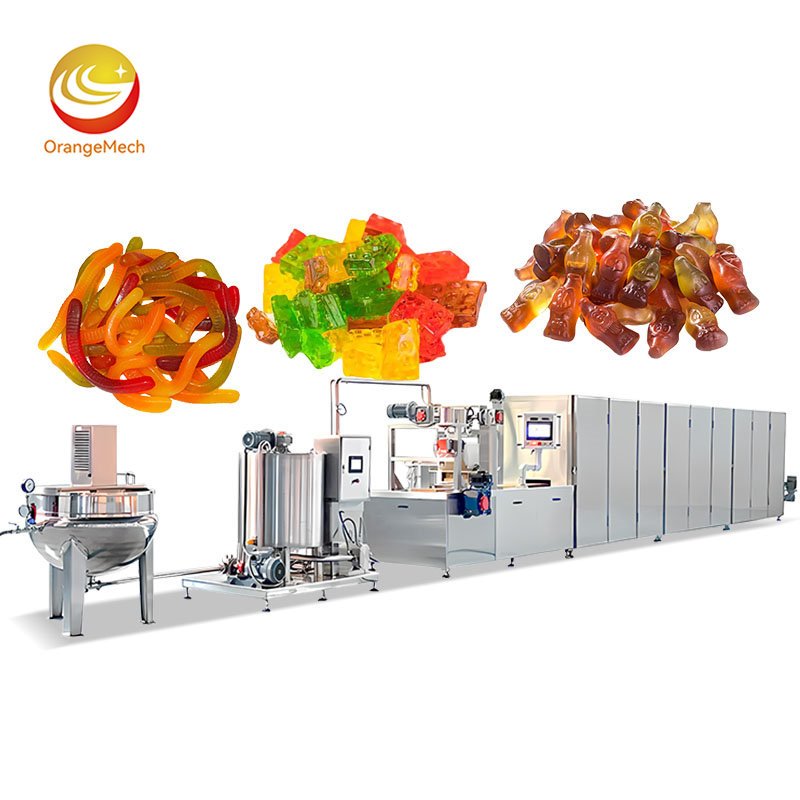

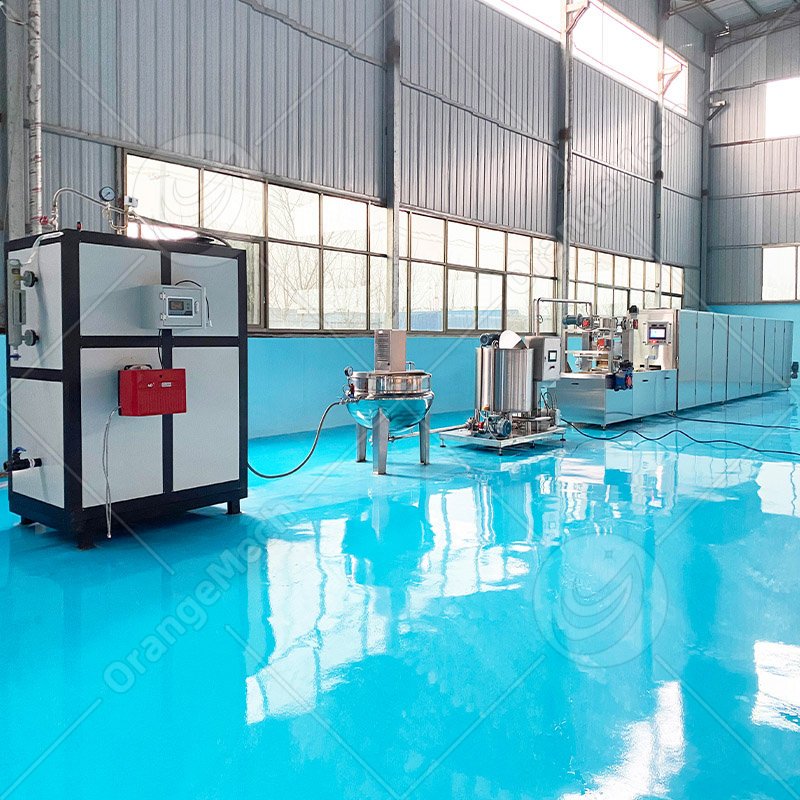

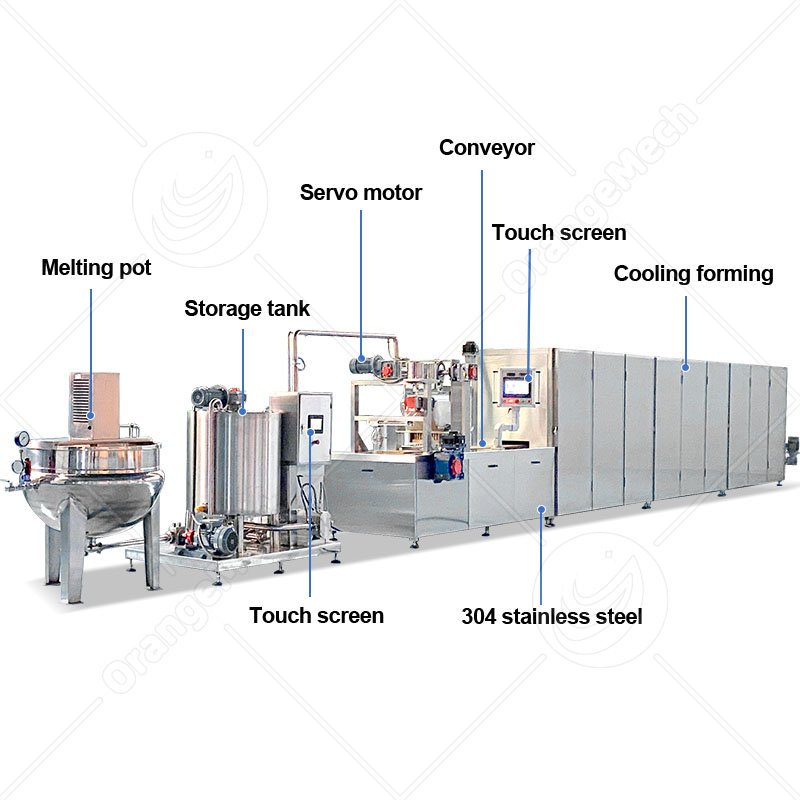

The gummy production line consists of a steam generator, a sugar-cooking kettle, a storage tank, a depositor, and a cooling tunnel. The steam generator produces steam to heat, stir, and melt the raw materials in the cooking kettle; once cooking is complete, the mixture is cooled to 90°C, and gelatin is added and thoroughly mixed in. The mixture is then piped to the storage tank, where colorings and flavorings are added, before being conveyed to the depositor’s hopper. Operators configure the parameters via the PLC interface; the depositor first sprays oil onto the molds and then deposits the syrup into them. The molds pass through the cooling tunnel for cooling and shaping, and the demolded candies are discharged via a conveyor belt.
Product Advantages
1. Fully automated and integrated; saves labor costs
Gummy production line can complete sugar boiling, pouring, cooling, demolding and other processes, and can be operated by one person, reducing labor costs.
2. Versatile functionality; diverse product range
By simply changing molds and recipes, the machine can produce various shapes of both soft gummies and hard candies.
3. PLC display; easy parameter adjustment
Equipped with a branded PLC touchscreen featuring bilingual (Chinese/English) interfaces, the system allows for quick parameter adjustments; the control panel can rotate 360 degrees to suit operational needs.
4. Compatible with various gelling agents; extensive product variety
Supports recipes based on gelatin, pectin, or carrageenan. It can produce single-color, dual-color, layered, and tri-color/tri-flavor (swirled) gummies, as well as center-filled gummies.
5. Precise depositing; consistent finished products
Servo motors drive both the depositing mechanism and mold transport. Parameters are adjustable via the PLC screen, ensuring consistent weight across finished products.
6. Heated depositing hopper with temperature sensors
The depositing hopper features a double-walled structure filled with heat-transfer oil, maintaining a constant syrup temperature and preventing solidification.
7. Easy installation
Installation is straightforward: simply align the machine frame and tighten the locking nuts at both ends. Mold installation is also simple and can be performed by non-specialist personnel.
Technical Parameters
| Machine Name | Gummy Production Line |
| Voltage | 380V/50Hz |
| Power | 70 KW |
| Production Capacity | 150–400 kg/h |
| Depositing Speed | 10–19 strokes/min |
| Candy Weight | 2–12 G |
| Steam Consumption | 300 kg/h |
| Steam Pressure | 0.6 MPa |
| Cooling System Operating Environment | Ambient Temp <25°C; Humidity <55% |
| Compressed Air Consumption | 0.3 m³/Min |
| Compressed Air Pressure | 0.4–0.6 MPa |
| Water Consumption | 0.3 m³/h |
Important Components
Steam Generator

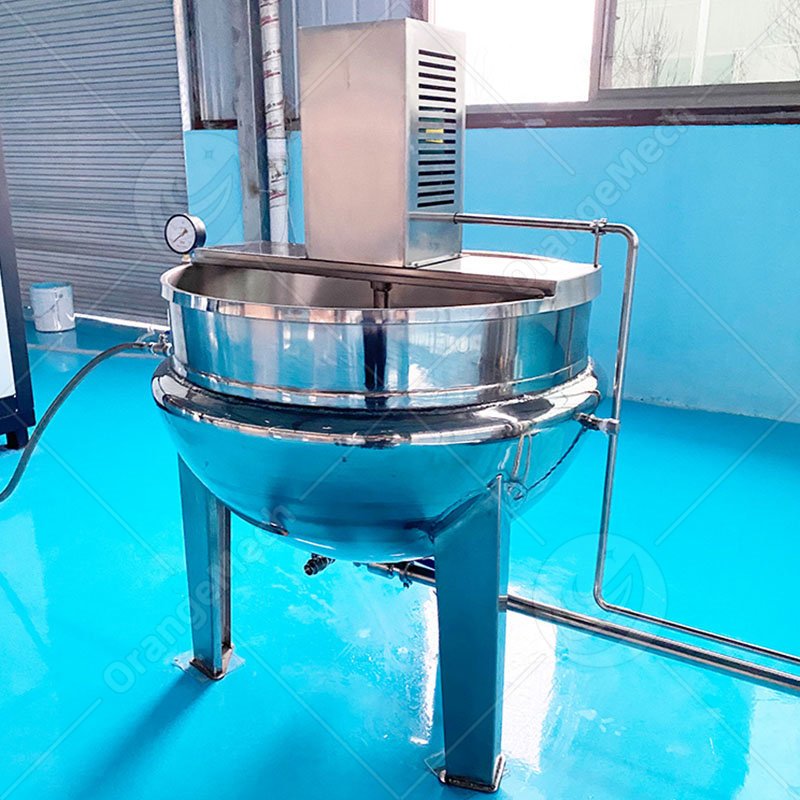

Sugar Cooking Kettle
Storage Tank

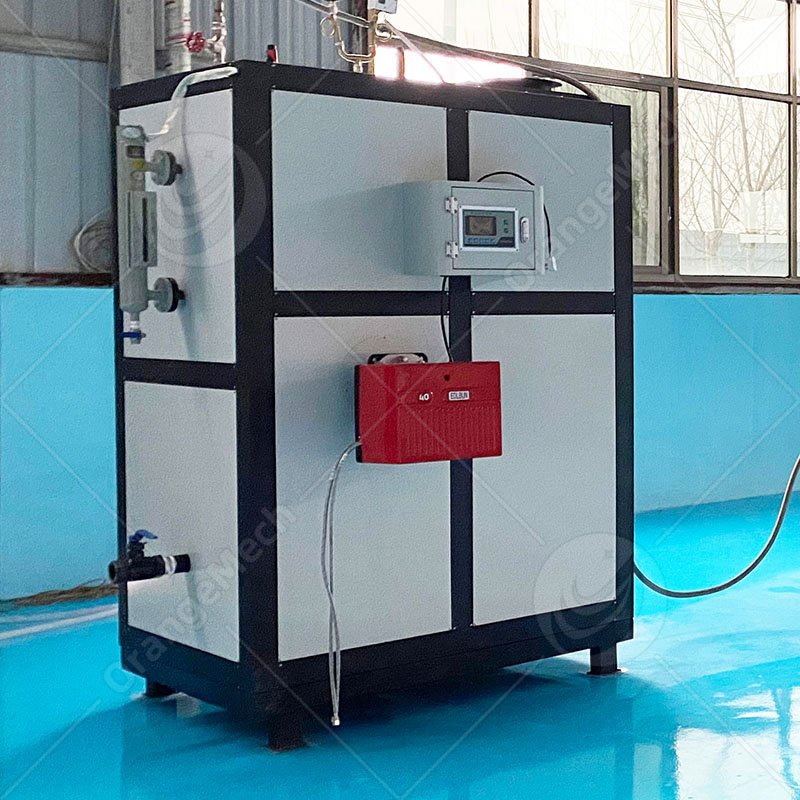

According to your needs, there are three heating methods to choose from: electric heating, gas heating and oil heating.
Features a double-walled structure for uniform heating and an integrated stirring mechanism to prevent scorching; more cost-effective than vacuum cooking kettles.

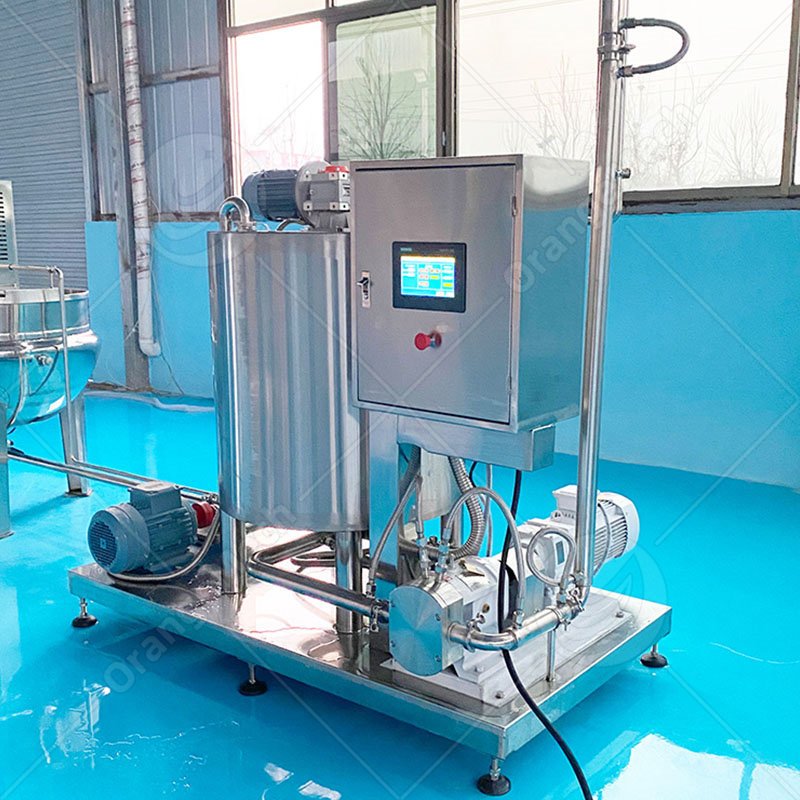

Double-walled design with an outer water jacket for heating and thermal insulation of the tank and transfer piping; parameters such as temperature are controlled via a PLC touchscreen.

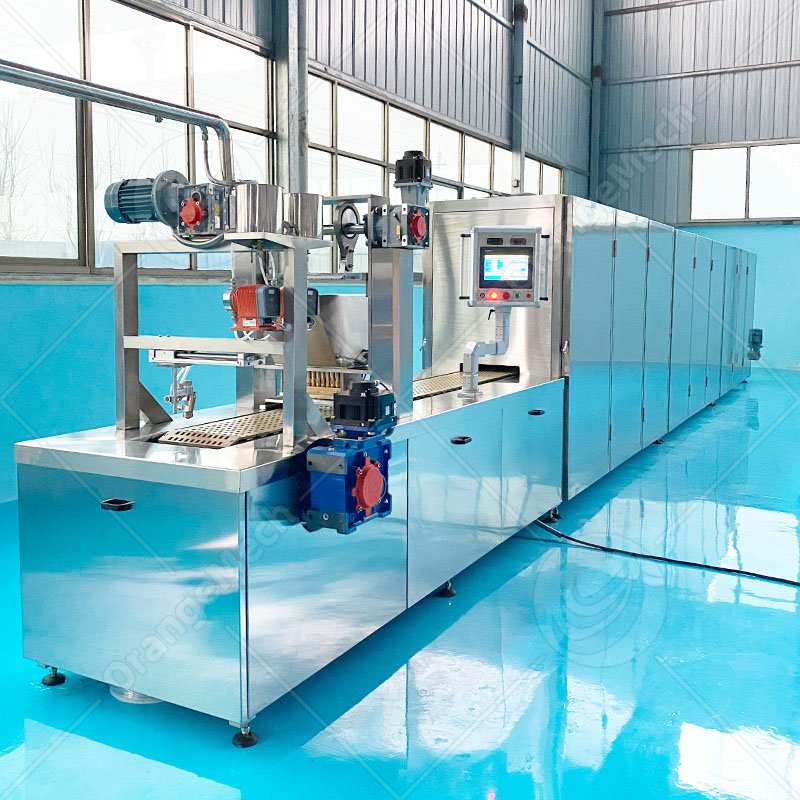

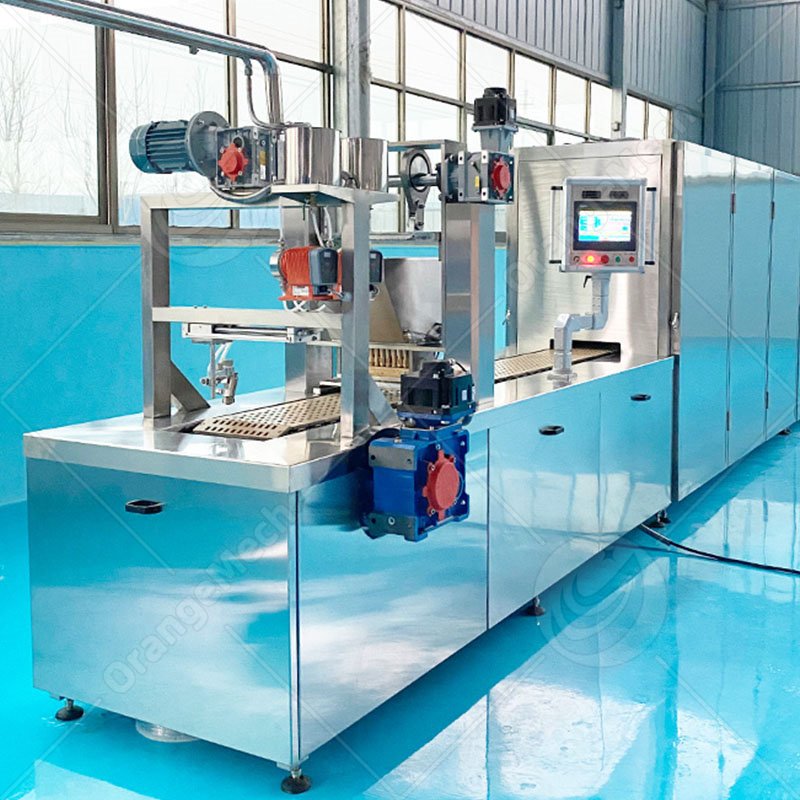

Depositing Machine
Cooling Tunnel
Demolding Unit

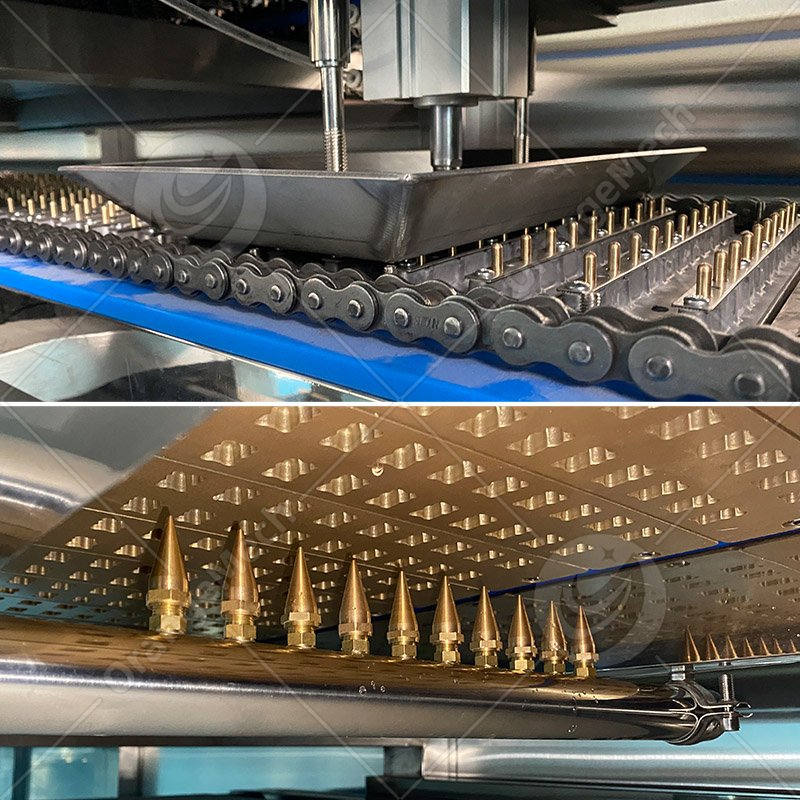

Equipped with a pre-oiling system that sprays the molds before depositing to prevent the syrup from sticking and ensure clean demolding; features a multi-language PLC touchscreen system with adjustable parameters for depositing speed and volume.

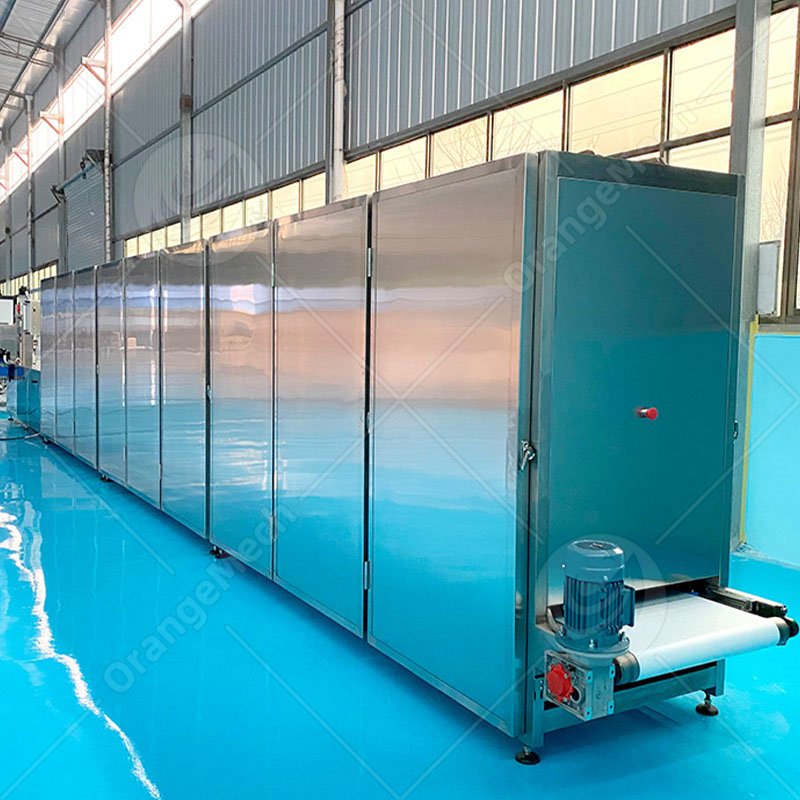

Equipped with dual compressors and shell-and-tube condensers for rapid, adjustable cooling; safety doors feature a latch mechanism and can be opened individually for easy inspection and cleaning.
Utilizes a dual-guide demolding design; a pressure plate presses against the mold to eject the finished product, followed by an air-blast mechanism that separates the candy from the mold, effectively minimizing the risk of demolding failure.
Applications
The gummy production line is widely used in factories producing confectionery, snack foods, health supplements, and pet food, as well as by OEM/ODM contract manufacturers.
1. Snack Confectionery Industry:
Suitable for various types of gummies—including gelatin, pectin, and carrageenan-based varieties—supporting single-color, dual-color, tri-color, layered, and variegated designs, as well as diverse custom shapes.
2. Functional Health Confectionery:
Production of vitamin gummies, probiotic gummies, collagen gummies, herbal extract gummies, and more.
3. Pet Food Industry:
It produces multi-nutrient pet gummies, trace-element supplement gummies, and nutritional treats for cats and dogs.
4.OEM Processing And R&D Trial Production:
Modular equipment, each unit can be replaced, and hard candy and lollipop can be made by changing molds and formulas.
FAQ
1. What types of gummies can the gummy production line produce?
It is compatible with gelatin, pectin, and carrageenan-based gummies. It supports the production of single-color, dual-flavor/dual-color (swirled or layered), and tri-flavor/tri-color (swirled) gummies, as well as crystal gummies, center-filled gummies, vitamin gummies, and nutraceutical gummies.
2. Can the candy size and shape be customized?

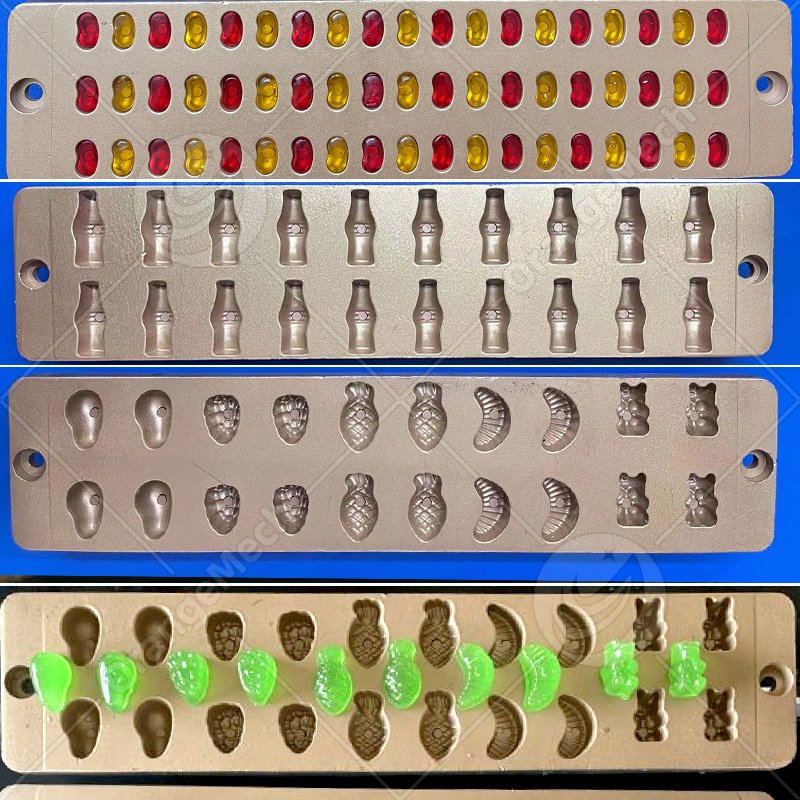

Yes, molds can be customized with various sizes, shapes, and patterns to meet your specific product requirements.
3. What types of steam generators can be used with the confectionery production line?
Electric steam generator: Offers precise temperature control; suitable for factories with strict environmental standards or those without a gas supply.
Gas steam generator: Available in natural gas and LPG versions; features high thermal efficiency and low operating costs. It is the most common type but requires a gas pipeline connection and an exhaust flue.
Oil-fired steam generator: Typically uses diesel; suitable for remote factories lacking natural gas pipeline access.
4. Can you provide product recipes for the industrial gummy making machine?
Orangemech can provide basic recipes. Before shipment, we can also conduct test runs using your specific recipes and send you videos of the process.
5. How are shipments handled for overseas customers?
Due to the large size of the gummy production line, overseas shipments are typically handled via sea freight. We support trade terms such as EXW, FCA, FOB, CIF, DDU, and DDP.
6. Can you provide certificates and export-related documentation?
Orangemech’s fully automatic candy production lines are CE certified. We hold import/export qualifications and can assist you with customs clearance and related procedures.
7. What is the warranty period, and what after-sales support is provided?
The gummy production line comes with a one-year warranty. Orangemech provides installation and training videos, as well as remote video guidance for commissioning and troubleshooting. On-site installation, commissioning, and guidance services are also available upon request.
